Rove Ultimate 3-Lead Hard Wire Kit

dash cam hardwire kit for rove r3 dash cam, r2-4k dash cam, r2-4k pro dashcam, r2-4k dual dash cam

ROVE Ultimate 3-Lead Hard Wire Kit With USB Type - C For ROVE R2-4K, R2-4K PRO, R2-4K DUAL & R3 Dash Cam Models –

ROVE Ultimate 3-lead Hardwire Kit - USB Type-C is a power management device that provides power to your R2-4K(with USB-C Port Only), R2-4K PRO, R2-4K DUAL & R3 dash cam models, and most other dash cams with a USB Type-C connector from your car's battery via fuse box to keep your device continuously running even after your car's engine is turned OFF to utilize the 24-HR Parking Monitor feature.

dash cam hardwire kit for rove r2, r2 pro, r2 dual, r3 3-lead hwk

COMPATIBILITY

The ROVE Ultimate 3-Lead Hard Wire Kit With USB Type-C is Specially designed for:

ROVE R2-4K Dash Cam (with USB-C Port Only), Powerful 4K Dash Cam with Built-in Wi-Fi 6, GPS Supercapacitor.
ROVE R2-4K PRO Dash Cam, Front Channel 4K Dash Cam, Built-in 5G Wi-Fi, GPS, Supercapacitor.
ROVE R2-4K DUAL, Dual Channel 4K Dash Cam with STARVIS 2 Sensor, Free 128GB Card & 20MBps 5G WiFi Download Speed.
ROVE R3 Dash Cam, 3” IPS Touch Screen, 3 Channel Dash Cam Front, and Rear with Cabin.

R3 Hardwire Kit Complete Installation Tools Set Included

Complete Installation Tools Set Included - Easy to Install - Designed for 24-HR Auto Trigger Parking Monitor

Decide A Perfect Place To Mount Your ROVE Dash Cam

The best place to put the dash cam is where you can easily use it. That means the camera view is unobstructed, you can easily remove it when needed, and it is discreetly placed. The key to mounting a dash cam is placing it where the ROVE R2-4K / R2-4K PRO / R2-4K DUAL / or R3 have a clear view and it doesn’t block your view.

Locate The Fleet’s Fuse Box

Locate your vehicle's fuse box using your Fuse Box Diagram. This information can usually be found in your vehicle’s Owner’s User Manual or from your manufacturer’s website. You can access the fuse box simply by lifting a tab or pulling a panel with your fingers, Or some may require the included trim tool.

Determine The Correct Fuse Slot For Installation

You will need to find two fuse slots to be used in this step.

A fuse Slot that provides constant power (RED wire will go here)
A fuse Slot that only provides power when you turn your key to ACC position (YELLOW wire will go here)

Install An Add-A-Fuse Tap

1. If you are using the previously identified

fuse slot that has an existing fuse in it, then

insert that existing fuse into the lower empty

slot of the Add-A-Fuse with correct orientation.

(See BLUE Arrow in the above image)

2. However, if your previously identified slot is empty and there is no existing fuse in it, then

you can just install the Add-A-Fuse directly

without needing to install 2nd fuse into the

empty slot of an Add-A-Fuse tap.

Fit The RED & YELLOW Fuse Taps To The Respective Slots

YELLOW: Now turn your car keys to ACC position. Now touch the voltmeter to the aluminium end of the YELLOW Add-A-Fuse to check the voltage. Your voltmeter should read the incoming voltage. It is getting power through the ACC fuse slot.

RED: Turn OFF the car. Now touch the voltmeter to end of RED Add-A-Fuse. Your voltmeter should read the incoming voltage. If YES, then great job. It is getting power through the always hot fuse slot.

Locating A GOOD Ground Point

Connect the BLACK Wire to the Grounding Screw or Bolt. We recommend that you choose the metal Chassis Grounding Screw, or it may cause your dash cam to not function properly and restart/reboot when power does not flow properly.

R3 Hardwire Kit - TUCKING UP AND ROUTING ALL THE CABLES NEATLY.

TEST THE DASH CAM - TUCKING UP AND ROUTING ALL THE CABLES NEATLY

LOW VOLTAGE PROTECTION - OVER CURRENT/SURGE PROTECTION

LOW VOLTAGE PROTECTION

The ROVE Ultimate 3-Lead Hard Wire Kit - USB Type-C will monitor your voltage status and cut off the power to the dashcam if the voltage drops below the configured value. This minimum voltage cut-off is 11.8VDC for a 12VDC battery and 23.6VDC for a 24VDC battery. This protects the vehicle’s battery. And reserves enough power so you can start your car for the next time. You have four different configuration choices that you can select when you want the power to be disconnected to the dash cam when the battery’s voltage reaches a certain level.

OVER CURRENT/SURGE PROTECTION

The ROVE Ultimate 3-Lead Hard Wire Kit - USB Type-C can detect abnormal over-voltage status and cut off power to prevent any damage to your dashcam. Additionally, the ROVE Hardwire Kit has a built-in extra fuse box (2A) to have extra protection.

New Arrived

ROVE Ultimate 3-Lead USB Type-C Hardwire Kit | for ROVE R2, R2 PRO, R2-4K DUAL and R3 Dash Cam | Check Compatibility Image Before Purchasing

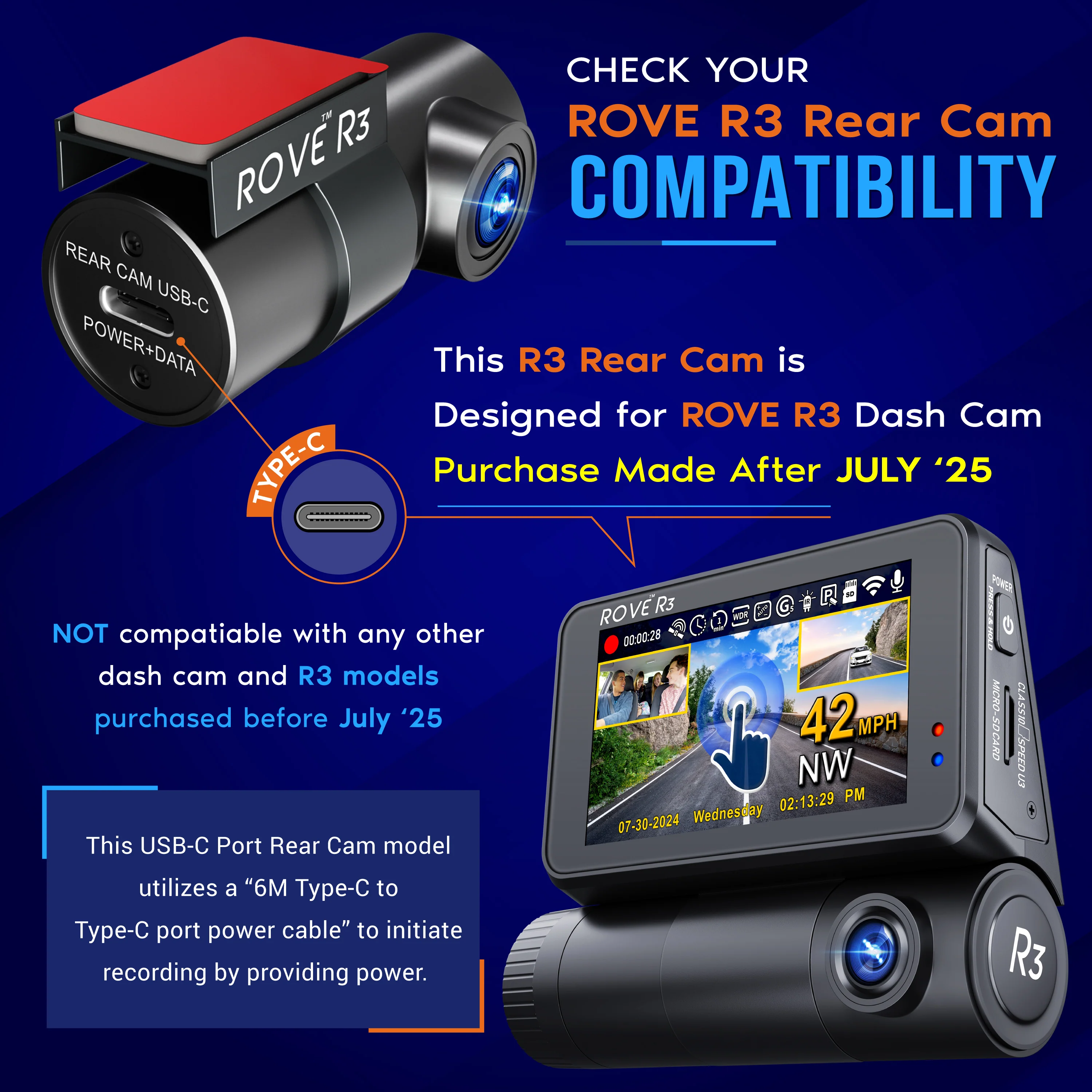

ROVE R3 Rear Cam with USB-C Port | Check Compatibility Image Before Purchasing
